UA-001-64 HOBO Pendant® Temperature/Alarm Data Logger 64K

Measures: Air and water temperature

Price: $79.00

SKU:

UA-001-64

DetailsQuestionsSpecificationsBase Station Interface

A miniature, waterproof one-channel temperature data logger, this model is value-priced for short-term shipping applications or long-term deployment. Data logger alarm LEDs flash if temperatures have exceeded user-set levels and delay options, and provide visible verification that temperatures have been within the desired range throughout deployment. This 64K model stores approximately 52K of 10-bit temperature readings. This model stores 6.5K of 10-bit temperature readings. Use a solar radiation shield for accurate temperature measurement in sunlight applications. See RS1 Solar Radiation Shield (assembly required) and M-RSA (pre-assembled) Solar Radiation Shield.

Features:

Low-cost temperature with alarm indication or light intensity
Waterproof housing for wet or underwater use
Data readout in less than 30 seconds via fast Optic USB interface

Environment:
The UA-001-64 Data Logger is for use in Indoor , Outdoor and Underwater environments

Measurements:
The UA-001-64 Data Logger supports the following measurements: Temperature, Water Temp

Documentation: UA-001-64 HOBO Pendant® Temperature Logger 8K User Manual

>Print Specifications

>Data Sheet

> View all Pendant loggers

IMPORTANT: This HOBO data logger requires HOBOware software and a communications device. See Related Items below

There are currently no questions about this product.
Ask a Question

Measurement range: -20° to 70°C (-4° to 158°F)

Alarms: High and low alarms can be configured for total amount of contiguous or non-contiguous time outside of user-defined limits between -20° and 70°C (-4° to 158°F)

Accuracy: ± 0.53°C from 0° to 50°C (± 0.95°F from 32° to 122°F)

Resolution: Temperature: 0.14°C at 25°C (0.25°F at 77°F)

Drift: Less than 0.1°C/year (0.2°F/year)

Response time:
Airflow of 2 m/s (4.4 mph): 10 minutes, typical to 90%
Water: 5 minutes, typical to 90%

Time accuracy: ± 1 minute per month at 25°C (77°F)

Operating range:
In water/ice: -20° to 50°C (-4° to 122°F)
In air: -20° to 70°C (-4° to 158°F)

Water depth rating: 30 m from -20° to 20°C (100 ft from -4° to 68°F)

NIST traceable certification: Available for temperature only at additional charge; temperature range -20° to 70°C (-4° to 158°F)

Battery life: 1 year typical use

Memory:
UA-001-08: 8K bytes (approximately 6.5K sample and event readings)
UA-001-64: 64K bytes (approximately 52K sample and event readings)

Materials: Polypropylene case; stainless steel screws; Buna-N o-ring

Weight: 18 g (0.6 oz)

Dimensions: 5.8 x 3.3 x 2.3 (centimeters) and 2.3 x 1.3 x 0.9 (inches)

The CE Marking identifies this product as complying with the relevant directives in the European Union (EU).

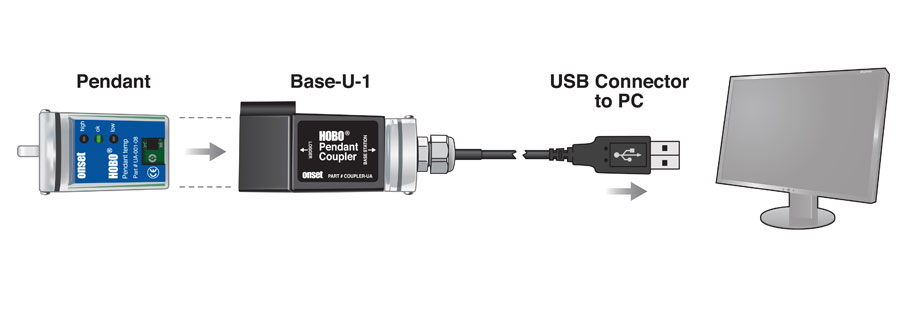

HOBO Pendant® Data Loggers require one of the following in order to comunicate with a PC:

> BASE-U-1Optic USB Base Station for Pendant
> BASE-U-4 Optic USB Base Station
> U-DTW-1 HOBO® Waterproof Shuttle
